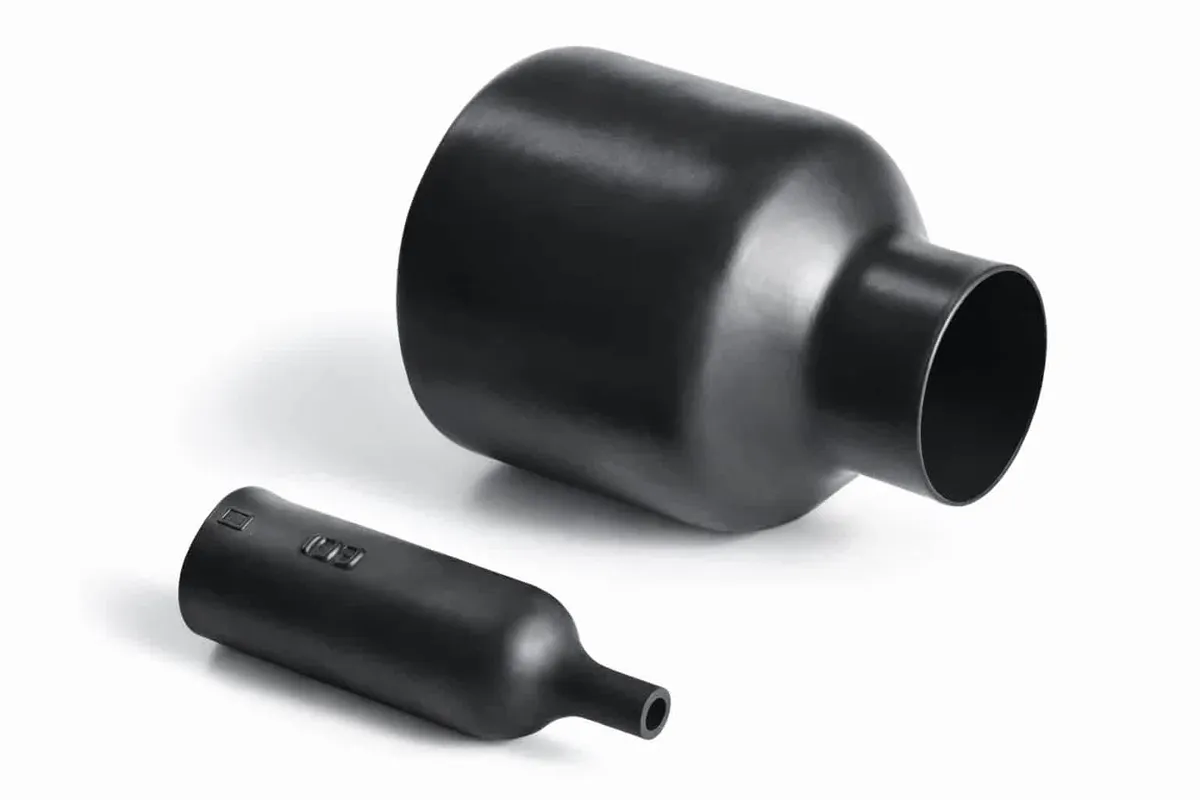

Helashrink 100 bottle heat shrink boot without rib for connector strain relief and easy re-entry repair
Overview diagram of Helashrink 100 series bottle shaped heat shrink boots for general cable strain relief

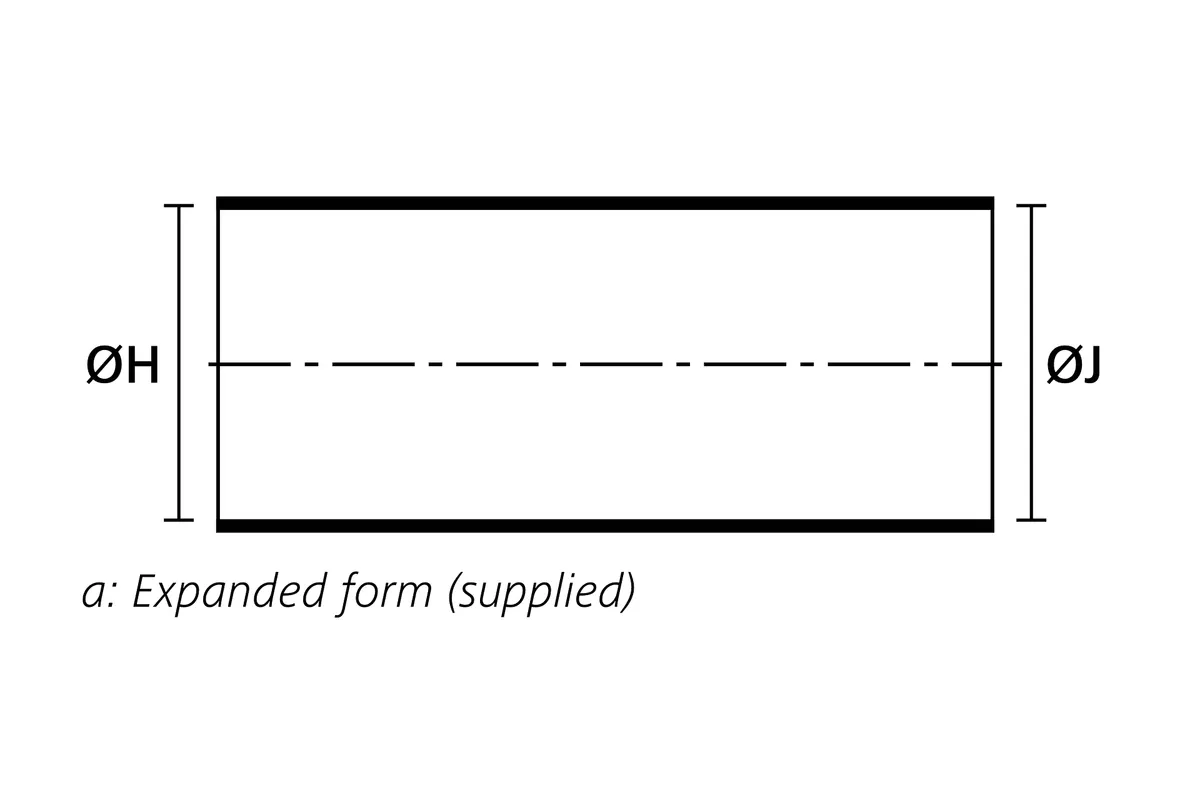

Expanded drawing of Helashrink 100 bottle shape heat shrink boot without rib before recovery

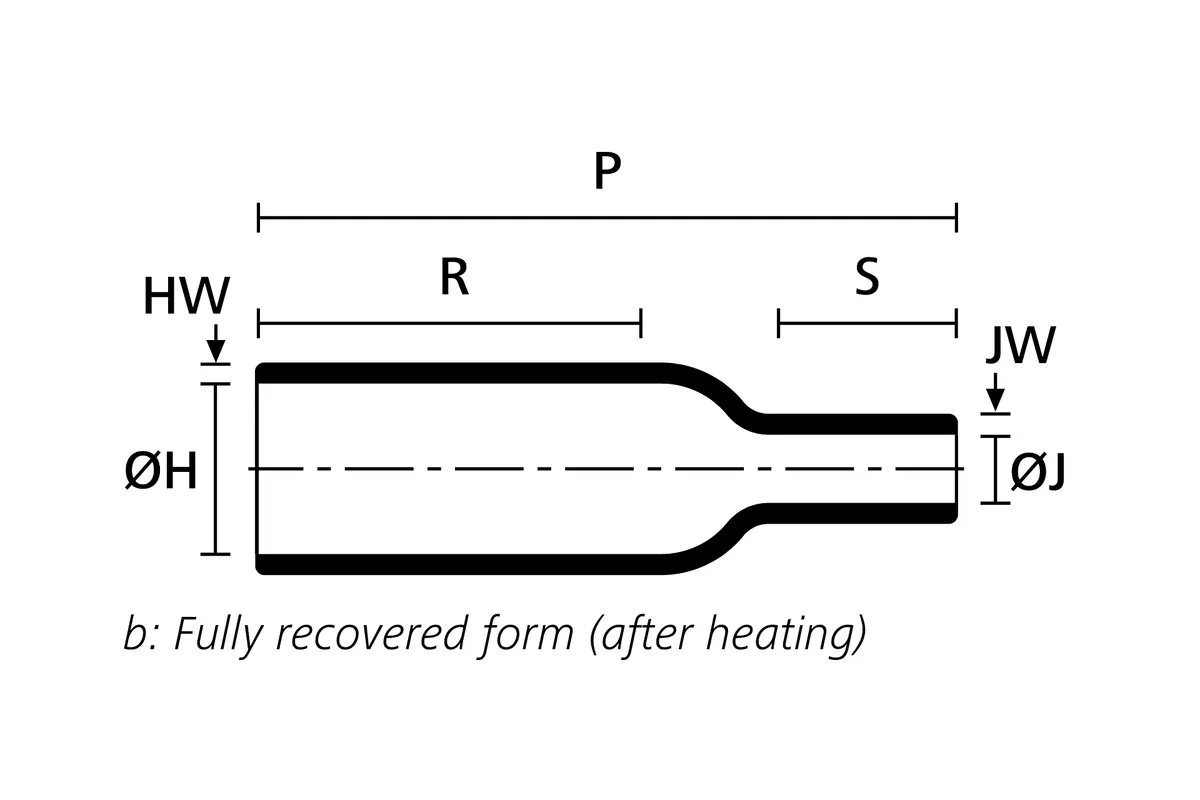

Recovered drawing of Helashrink 100 bottle shape heat shrink boot without rib

100 Series Bottle Heatshrink Shapes without Rib

Heat Shrink Bottle Boots

Products

Item # Expanded (Min) H Expanded (Min) J P ±10% R ±10% Material
101-1-B7 1.22 1.22 2.60 1.50 Semi-Rigid Flame Retarded Polyolefin
101-1-G 1.22 1.22 2.60 1.50 Fluid Resistant Flame Retarded Elastomer
101-1-H 1.22 1.22 2.60 1.50 Flexible Zero-Hal Limited Fire Hazard Material
101-1-J 1.22 1.22 2.60 1.50 Flexible Flame Retarded Polyolefin
101-1-L 1.22 1.22 2.60 1.50 Flexible Flame Retarded Fluro-Elastomer
101-2-B7 0.94 0.61 2.60 1.50 Semi-Rigid Flame Retarded Polyolefin
101-2-G 0.94 0.61 2.60 1.50 Fluid Resistant Flame Retarded Elastomer
101-2-H 0.94 0.61 2.60 1.50 Flexible Zero-Hal Limited Fire Hazard Material
101-2-J 0.94 0.61 2.60 1.50 Flexible Flame Retarded Polyolefin
101-2-L 0.94 0.61 2.60 1.50 Flexible Flame Retarded Fluro-Elastomer
102-1-B7 1.42 1.42 2.90 1.70 Semi-Rigid Flame Retarded Polyolefin
102-1-G 1.42 1.42 2.90 1.70 Fluid Resistant Flame Retarded Elastomer
102-1-H 1.42 1.42 2.90 1.70 Flexible Zero-Hal Limited Fire Hazard Material
102-1-J 1.42 1.42 2.90 1.70 Flexible Flame Retarded Polyolefin
102-1-L 1.42 1.42 2.90 1.70 Flexible Flame Retarded Fluro-Elastomer
102-2-B7 1.18 0.71 2.90 1.70 Semi-Rigid Flame Retarded Polyolefin
102-2-G 1.18 0.71 2.90 1.70 Fluid Resistant Flame Retarded Elastomer
102-2-H 1.18 0.71 2.90 1.70 Flexible Zero-Hal Limited Fire Hazard Material
102-2-J 1.18 0.71 2.90 1.70 Flexible Flame Retarded Polyolefin
102-2-L 1.18 0.71 2.90 1.70 Flexible Flame Retarded Fluro-Elastomer
103-1-B7 1.68 1.68 3.76 2.13 Semi-Rigid Flame Retarded Polyolefin
103-1-G 1.68 1.68 3.76 2.13 Fluid Resistant Flame Retarded Elastomer
103-1-H 1.68 1.68 3.76 2.13 Flexible Zero-Hal Limited Fire Hazard Material
103-1-J 1.68 1.68 3.76 2.13 Flexible Flame Retarded Polyolefin
103-1-L 1.68 1.68 3.76 2.13 Flexible Flame Retarded Fluro-Elastomer
103-2-B7 1.49 0.84 3.76 2.13 Semi-Rigid Flame Retarded Polyolefin
103-2-G 1.49 0.84 3.76 2.13 Fluid Resistant Flame Retarded Elastomer
103-2-H 1.49 0.84 3.76 2.13 Flexible Zero-Hal Limited Fire Hazard Material
103-2-J 1.49 0.84 3.76 2.13 Flexible Flame Retarded Polyolefin
103-2-L 1.49 0.84 3.76 2.13 Flexible Flame Retarded Fluro-Elastomer
104-1-B7 0.65 0.65 1.00 0.56 Semi-Rigid Flame Retarded Polyolefin
104-1-G 0.65 0.65 1.00 0.56 Fluid Resistant Flame Retarded Elastomer
104-1-H 0.65 0.65 1.00 0.56 Flexible Zero-Hal Limited Fire Hazard Material
104-1-J 0.65 0.65 1.00 0.56 Flexible Flame Retarded Polyolefin
104-1-L 0.65 0.65 1.00 0.56 Flexible Flame Retarded Fluro-Elastomer
104-2-B7 0.42 0.33 1.00 0.56 Semi-Rigid Flame Retarded Polyolefin
104-2-G 0.42 0.33 1.00 0.56 Fluid Resistant Flame Retarded Elastomer
104-2-H 0.42 0.33 1.00 0.56 Flexible Zero-Hal Limited Fire Hazard Material
104-2-J 0.42 0.33 1.00 0.56 Flexible Flame Retarded Polyolefin
104-2-L 0.42 0.33 1.00 0.56 Flexible Flame Retarded Fluro-Elastomer
105-1-B7 0.92 0.92 1.50 0.90 Semi-Rigid Flame Retarded Polyolefin
105-1-G 0.92 0.92 1.50 0.90 Fluid Resistant Flame Retarded Elastomer
105-1-H 0.92 0.92 1.50 0.90 Flexible Zero-Hal Limited Fire Hazard Material
105-1-J 0.92 0.92 1.50 0.90 Flexible Flame Retarded Polyolefin
105-1-L 0.92 0.92 1.50 0.90 Flexible Flame Retarded Fluro-Elastomer
105-2-B7 0.54 0.46 1.50 0.90 Semi-Rigid Flame Retarded Polyolefin
105-2-G 0.54 0.46 1.50 0.90 Fluid Resistant Flame Retarded Elastomer
105-2-H 0.54 0.46 1.50 0.90 Flexible Zero-Hal Limited Fire Hazard Material
105-2-J 0.54 0.46 1.50 0.90 Flexible Flame Retarded Polyolefin
105-2-L 0.54 0.46 1.50 0.90 Flexible Flame Retarded Fluro-Elastomer
106-1-B7 1.22 1.22 2.18 1.04 Semi-Rigid Flame Retarded Polyolefin
106-1-G 1.22 1.22 2.18 1.04 Fluid Resistant Flame Retarded Elastomer
106-1-H 1.22 1.22 2.18 1.04 Flexible Zero-Hal Limited Fire Hazard Material
106-1-J 1.22 1.22 2.18 1.04 Flexible Flame Retarded Polyolefin
106-1-L 1.22 1.22 2.18 1.04 Flexible Flame Retarded Fluro-Elastomer
106-2-B7 0.76 0.56 2.18 1.04 Semi-Rigid Flame Retarded Polyolefin
106-2-G 0.76 0.56 2.18 1.04 Fluid Resistant Flame Retarded Elastomer
106-2-H 0.76 0.56 2.18 1.04 Flexible Zero-Hal Limited Fire Hazard Material
106-2-J 0.76 0.56 2.18 1.04 Flexible Flame Retarded Polyolefin
106-2-L 0.76 0.56 2.18 1.04 Flexible Flame Retarded Fluro-Elastomer
107-1-B7 2.04 2.04 4.90 2.60 Semi-Rigid Flame Retarded Polyolefin
107-1-G 2.04 2.04 4.90 2.60 Fluid Resistant Flame Retarded Elastomer
107-1-H 2.04 2.04 4.90 2.60 Flexible Zero-Hal Limited Fire Hazard Material
107-1-J 2.04 2.04 4.90 2.60 Flexible Flame Retarded Polyolefin
107-1-L 2.04 2.04 4.90 2.60 Flexible Flame Retarded Fluro-Elastomer
107-2-B7 1.85 1.40 4.90 2.60 Semi-Rigid Flame Retarded Polyolefin
107-2-G 1.85 1.40 4.90 2.60 Fluid Resistant Flame Retarded Elastomer
107-2-H 1.85 1.40 4.90 2.60 Flexible Zero-Hal Limited Fire Hazard Material
107-2-J 1.85 1.40 4.90 2.60 Flexible Flame Retarded Polyolefin
107-2-L 1.85 1.40 4.90 2.60 Flexible Flame Retarded Fluro-Elastomer
118-1-B7 2.60 2.60 6.32 3.60 Semi-Rigid Flame Retarded Polyolefin
118-1-G 2.60 2.60 6.32 3.60 Fluid Resistant Flame Retarded Elastomer
118-1-H 2.60 2.60 6.32 3.60 Flexible Zero-Hal Limited Fire Hazard Material
118-1-J 2.60 2.60 6.32 3.60 Flexible Flame Retarded Polyolefin
118-1-L 2.60 2.60 6.32 3.60 Flexible Flame Retarded Fluro-Elastomer
119-1-B7 3.40 3.40 8.25 4.65 Semi-Rigid Flame Retarded Polyolefin
119-1-G 3.40 3.40 8.25 4.65 Fluid Resistant Flame Retarded Elastomer
119-1-H 3.40 3.40 8.25 4.65 Flexible Zero-Hal Limited Fire Hazard Material
119-1-J 3.40 3.40 8.25 4.65 Flexible Flame Retarded Polyolefin
119-1-L 3.40 3.40 8.25 4.65 Flexible Flame Retarded Fluro-Elastomer
119-2-B7 3.20 2.19 8.25 4.65 Semi-Rigid Flame Retarded Polyolefin
119-2-G 3.20 2.19 8.25 4.65 Fluid Resistant Flame Retarded Elastomer
119-2-H 3.20 2.19 8.25 4.65 Flexible Zero-Hal Limited Fire Hazard Material
119-2-J 3.20 2.19 8.25 4.65 Flexible Flame Retarded Polyolefin
119-2-L 3.20 2.19 8.25 4.65 Flexible Flame Retarded Fluro-Elastomer
