H-CL-181 Series Termination Sleeves
Product #: SS-H-CL-181-2222
Environmental resistant coaxial cable termination, high temperature. Leads: MIL-W-22759/32-22.

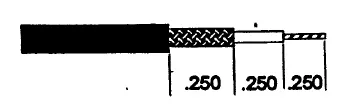

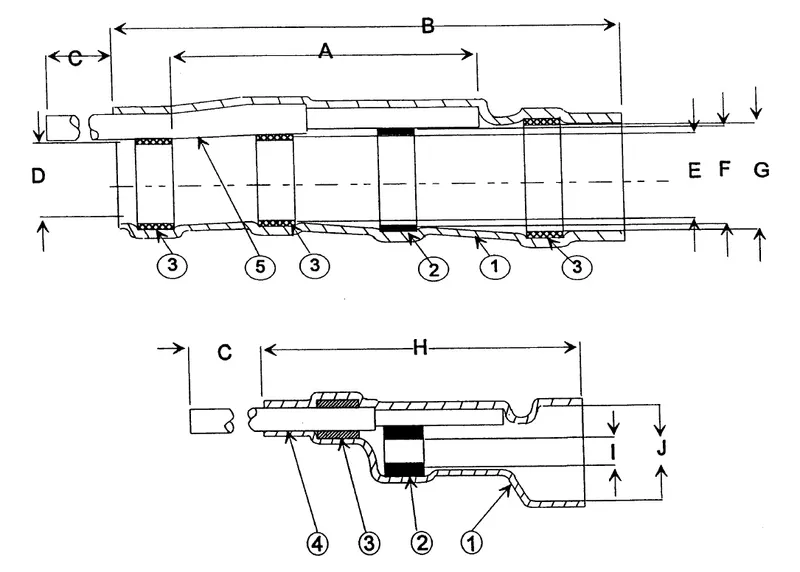

Constructional Details
| Max. A | 0.500 in |
| Min. B | 0.78 in |
| B Tolerance | ±0.05 in |
| Min. C | 5.0 in |
| Min. D | 0.115 in |
| Min. E | 0.135 in |
| Min. F | 0.145 in |
| Min. G | 0.175 in |
| Min. H | 0.62 in |
| H Tolerance | ±0.03 in |
| Min. I | 0.044 in |
| Min. J | 0.120 in |
Material
| Sealing Rings | Fluorocarbon-based thermoplastic |
Notes
| Note | Insulation Sleeves: Heat-shrinkable, radiation cross-linked, modified polyvinylidene fluoride, transparent blue. |
| Solder Preforms with Flux: Type Sn63 SRMAP per QQ-S-571. | |
| Sealing Rings: Fluorocarbon-based thermoplastic. | |
| Conductor Splice Lead: MIL-W-22759/32-22-9. | |
| Ground Lead: MIL-W-22759/32-22-90. |
