H-M Termination Sleeves
Product #: SS-H-M-2-05
Shield terminator, environment resistant solder style.

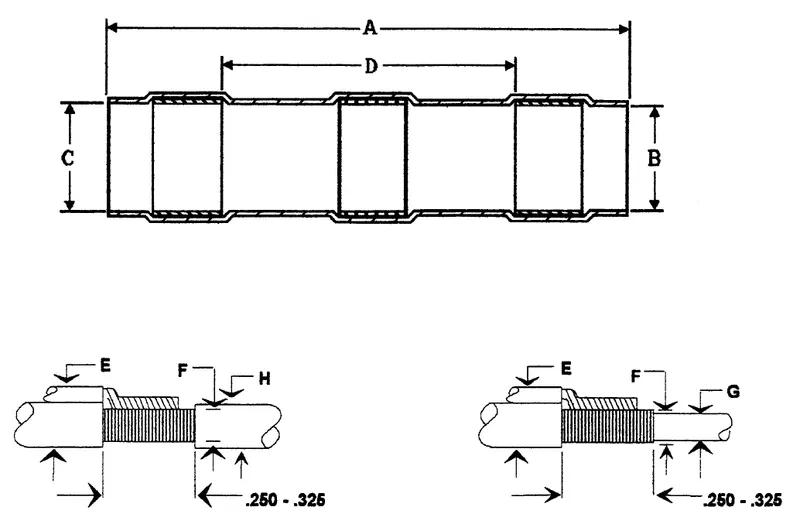

Constructional Details
| Min. A | 0.500 in |
| A Tolerance | ±0.07 in |
| Min. B | 0.105 in |
| Min. C | 0.145 in |
| Min. D | 0.325 in |
| Max. E | 0.145 in |
| Min. F | 0.055 in |
| Min. G | 0.030 in |
| Max. H | 0.105 in |
