100 Ohm 26 AWG High Performance Twinaxial Cable
Product #: W-2754-2277
Specifications
| Temperature | -55 to 200 ºC |
| Impedance | 100 ohms |
| Impedance Tolerance | +5 ohms |
| -10 ohms | |
| Time Delay | 1.24 nsec/ft |
| Nom. Velocity of Propagation | 80 % |
| Nom. Attenuation @ 100 MHz per 100 ft. | 9.50 dB |
| Nom. Attenuation @ 200 MHz per 100 ft. | 13.4 dB |
| Nom. Attenuation @ 1 GHz per 100 ft. | 31.00 dB |
| Capacitance | 11.5 pF/ft |
| Flammability | Shall Pass FAA FAR 25.853/869 |
| Maximum Time Delay | 1.24 nsec/ft |
| Root Mean Square (RMS) Dielectric Strength | 1200 V |
| Nom. Weight per 1000 ft. | 8.81 lb |

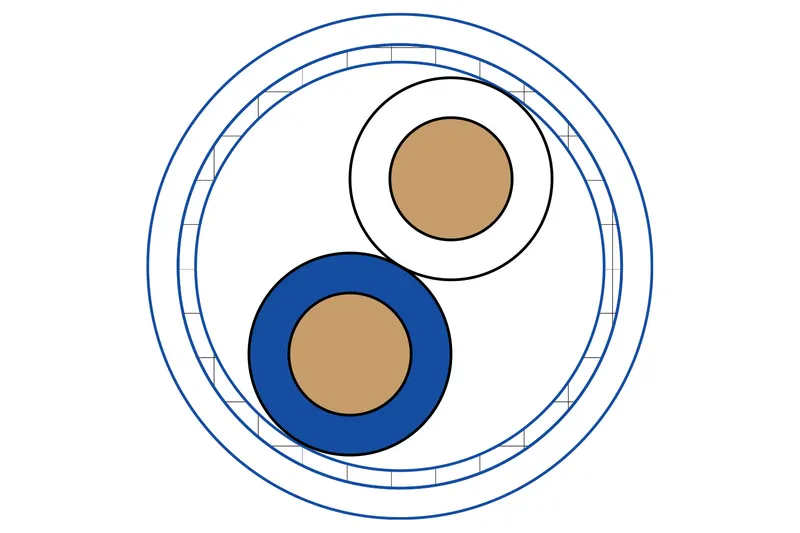

Construction Details
| Conductor | 26 AWG 19/38 High Strength Silver Plated Alloy |
| Nom. Conductor Diameter | 0.020 in |
| Insulation | Extruded PTFE Over Expanded PTFE Colors - White and Blue |
| Nom. Insulation Diameter | 0.045 in |
| Cable Type | Planetary Twist per M17 for Balanced Line with Fillers |
| Outer Shield | 38 AWG Silver Plated Copper Braid Having 90% Minimum Optimum Coverage |
| Outer Jacket Material | Extruded FEP - Color White |
| Nom. Outer Jacket Diameter | 0.120 in |
Packaging
| Packaging | To be supplied on bulk reels, random factory lengths |
