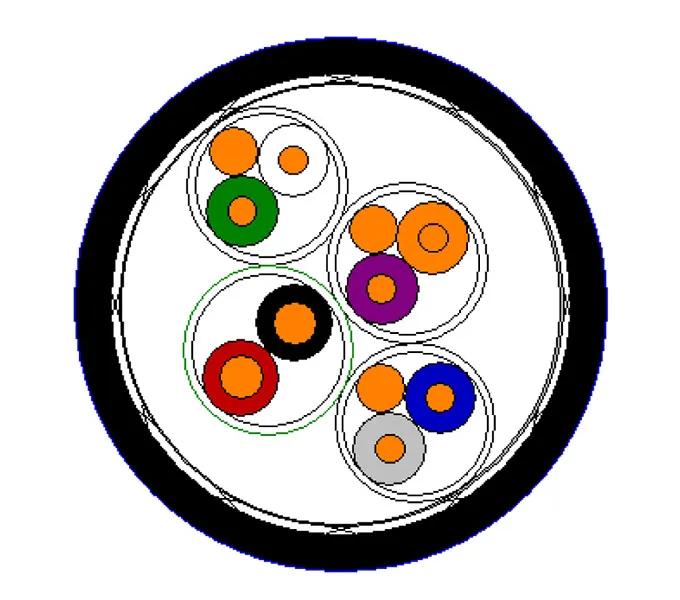

Three 90 Ohm, USB 3.0 Power TPS Aerospace Cables with Foil and Braided Shields with Jacket

Product #: W-5541-2067

Specifications

Packaging	To be supplied on bulk reels, 100 feet multiple lengths
Power Pair Color	Red + Black

Conductor - Data T.P.S	28 AWG 7/36 Silver Plated Copper
Nom. Conductor Diameter - Data T.P.S	0.014 in
Insulation - Data T.P.S	Extruded PTFE Per AS22759/11
Nom. Insulation Diameter - Data T.P.S	0.033 in
Drain	28 AWG Tinned Copper Wire
Nom. Drain Diameter	0.014 in
Twisting	Two Conductors Planetary Twisted for 90 Ohm Signal, with Drain
Nom. Twisting Diameter	0.014 in
Foil Shield - Data T.P.S	Aluminized Mylar Facing in to Contact Drain, 35% Min Overlap
Nom. Foil Shield Diameter - Data T.P.S	0.070 in
Conductor - Power T.P.S	26 AWG 19/38 Silver Plated Copper
Nom. Conductor Diameter - Power T.P.S	0.019 in
Insulation - Power T.P.S	Extruded PTFE Per AS22759/11
Nom. Insulation Diameter - Power T.P.S	0.038 in
Foil Shield - Power T.P.S	Aluminized Myler Facing in, 35% Min Overlap
Nom. Foil Shield Diameter - Power T.P.S	0.090 in
Cable	Planetary Cable T.P.S. Components with Filler as Required to Keep Round
Nom. Cable Diameter	0.176 in
Shield	Aluminized Mylar Facing Out, 35% Min Overlap
Nom. Shield Diameter	0.182 in
Braid	Braided Tinned Copper, 90% Min Coverage
Nom. Braid Diameter	0.204 in
Jacket	Extruded DUR-X-THANE FR, 0.020”/0.025” Nom. Wall Thickness Color Black
Nom. Jacket Diameter	0.240 in
