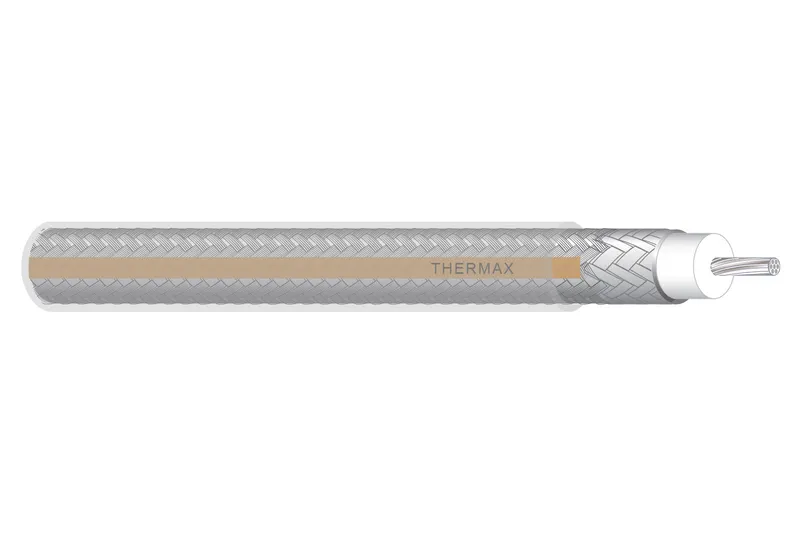

Mobile Solutions2 High Temperature, Low-loss Cables
Product #: MS²-320
MS2 is low-loss, high-temperature cable with superior electrical and environmental performance for the most demanding aerospace, wireless, and microwave applications. The air-spaced PTFE dielectric provides low loss and saves weight, and the sophisticated double shielding virtually eliminates crosstalk.This dielectric construction, and the extruded FEP jacket, ensure consistent performance throughout MS2's extended temperature range.
Specifications
| Temperature Rating | 200 ºC |
| Impedance | 50 ± 2 Ω |
| Dielectric | Air Spaced PTFE tape. |
| Dielectric Diameter | 0.250 in |
| 6.35 mm | |
| Inner Shield | Flat Silver-plated copper braid, 95% coverage |
| Outer Shield | Silver Plated Copper braid, 90% minimum coverage |
| Jacket | Extruded FEP (yellow) |
| Jacket Diameter | 0.322 in |
| 8.18 mm | |
| Center Conductor | Stranded SPC (Silver-plated copper) |
| Inner Conductor Diameter | 0.089 in |
| 2.26 mm | |
| Inner Conductor Stranding | 7/0.0296 |
| Inner Shield Diameter | 0.262 in |
| 6.65 mm | |
| Outer Shield Diameter | 0.290 in |
| 7.37 mm | |
| Min. Bend Radius | 1.5 in |
| 38.10 mm | |
| Capacitance | 26.0 pF/ft |
| Velocity of Propagation | 77.0 % |
| Weight | 109.0 lb/1000 ft. |
| 162.20 kg/1000 m. | |
| Attenuation @ 500 MHz per 100 ft. | 3.7 dB |
| Attenuation @ 1 GHz per 100 ft. | 5.3 dB |
| Attenuation @ 3 GHz per 100 ft. | 9.5 dB |
| Attenuation @ 5 GHz per 100 ft. | 12.5 dB |
| Attenuation @ 10 GHz per 100 ft. | 18.4 dB |
| Average Power @ 1 GHz, 20°C | 3997 W |
| Options | Other jacket colors available. |
