MaxForm Hand-formable Cables
Hand Formable Cables

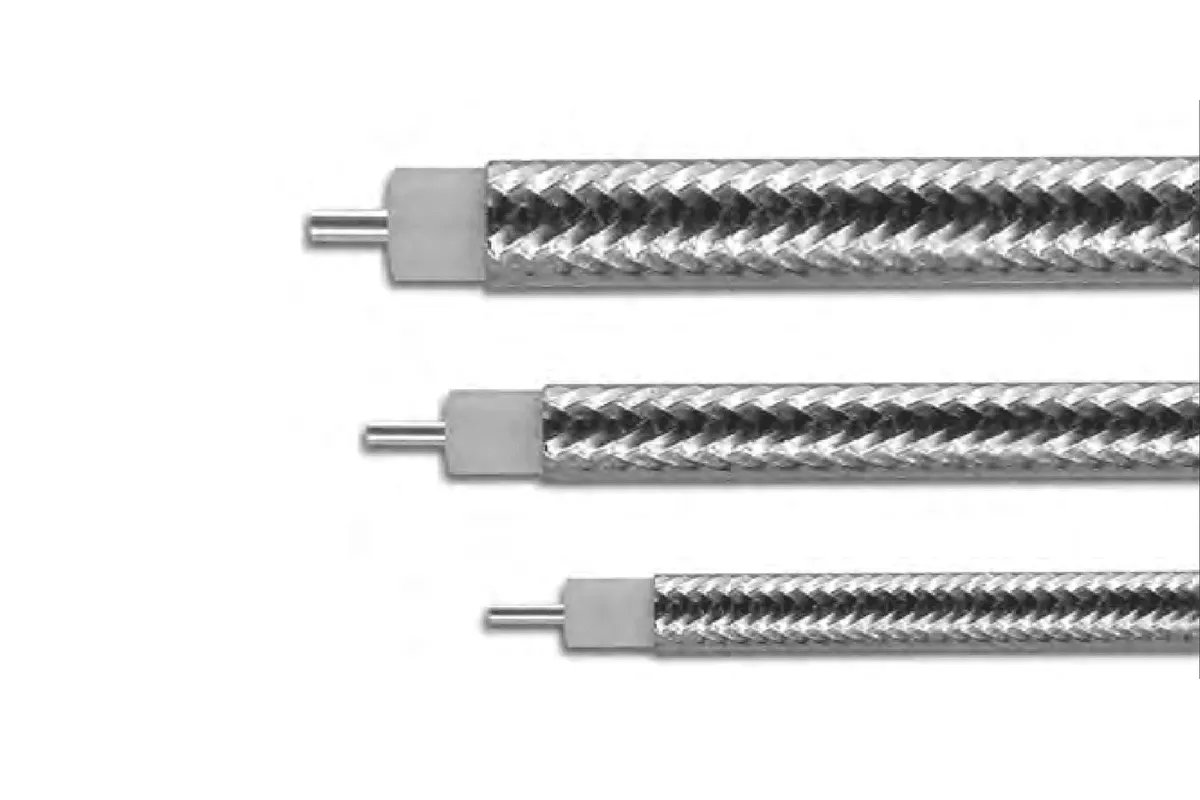

MaxForm cable is a hand-formable alternative to semi-rigid cable. With its 100% shield coverage, it provides equivalent performance to MIL-C-17 semi- rigid, but can be formed by hand without the use of bending equipment. Cable assemblies can be made to approximate overall length and bent to fit when installing into equipment. MaxForm cable can be used with connectors designed for MIL-C-17 semi-rigid cable, with no change in assembly procedures.
Products
| Item # | Temperature Rating | Inner Conductor Diameter | Dielectric Diameter | Weight | Capacitance |
|---|---|---|---|---|---|
| 670-086/50Y | 260 ºC | 0.020 in | 0.065 in | 11.40 lb/1000 ft. | 29.0 pF/ft |
| 670-086/50YXE | 200 ºC | 0.020 in | 0.065 in | 14.1 lb/1000 ft. | 29.0 pF/ft |
| 670-086/50YXV | 105 ºC | 0.020 in | 0.065 in | 14.1 lb/1000 ft. | 29.0 pF/ft |
| 670-086/75Y | 260 ºC | 0.011 in | 0.065 in | 11.40 lb/1000 ft. | 19.5 pF/ft |
| 670-086/75YXE | 200 ºC | 0.011 in | 0.065 in | 14.1 lb/1000 ft. | 19.5 pF/ft |
| 670-086/75YXV | 105 ºC | 0.011 in | 0.065 in | 14.1 lb/1000 ft. | 19.5 pF/ft |
| 670-141Y | 260 ºC | 0.037 in | 0.119 in | 25.5 lb/1000 ft. | 29.0 pF/ft |
| 670-141YXE | 200 ºC | 0.037 in | 0.119 in | 31.7 lb/1000 ft. | 29.0 pF/ft |
| 670-141YXV | 105 ºC | 0.037 in | 0.119 in | 31.7 lb/1000 ft. | 29.0 pF/ft |
| 670-250Y | 260 ºC | 0.064 in | 0.201 in | 70.3 lb/1000 ft. | 29.6 pF/ft |
| 670-250YXE | 200 ºC | 0.064 in | 0.201 in | 85.8 lb/1000 ft. | 29.6 pF/ft |
| 670-250YXV | 105 ºC | 0.064 in | 0.201 in | 85.8 lb/1000 ft. | 29.6 pF/ft |
