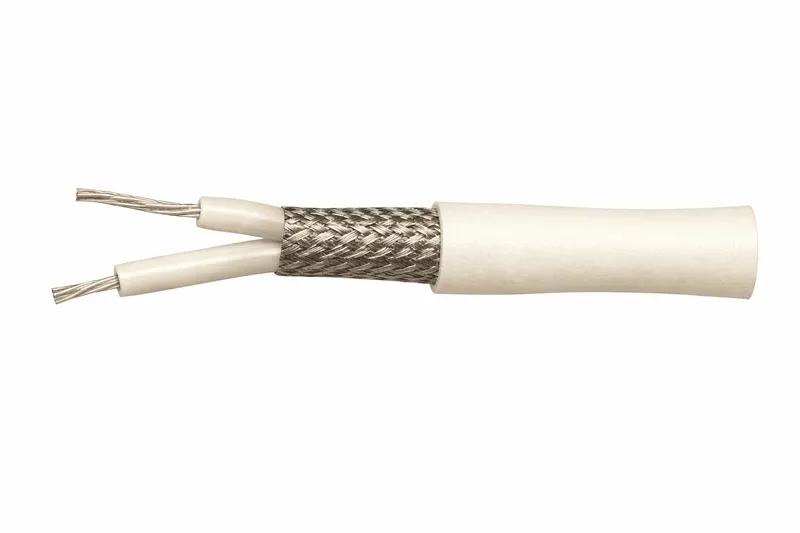

[ai] LTE high speed 100 ohm twinaxial cable with air expanded PTFE dielectric

LTE High-speed Twinaxial Cables - 100 Ohm Parallel and Twisted Pair

Product #: TC-746

LTE low-density, air-expanded PTFE dielectric gives these cables very fast transmission speeds and low loss in a small size, along with exceptional flexibility. These cables are just some examples of the performance levels provided by LTE dielectric— many other configurations are also available.

Specifications

Temperature Rating 150 ºC
Impedance 125Ω ± 10%
Operating Voltage 30 V
Shield AWG 38 nickel-plated Copper, 95% coverage
Jacket Extruded ETFE, White
Jacket Diameter 0.182 in
4.62 mm
Primary Insulation LTE (extruded expanded low-density PTFE)
Center Conductor Stranded Silver-plated high-strength copper alloy
Component Wire Conductor Diameter 0.0240 in
0.61 mm
Capacitance 17.0 pF/ft
Velocity of Propagation 83.0 %
Time Delay 1.23 ns/foot
Weight 18 lb/1000 ft.
26.80 kg/1000 m.
Drain Wire None
Attenuation @ 2 GHz per 100 ft. 1.0 dB
Shield Diameter 0.162 in
4.12 mm
Component Wire Stranding 19/36 SPCA (Silver-plated high-strength copper (alloy 135)).
Component Wire Lay Twisted (1.75)
Component Wire Insulation Diameter 0.074 in
1.88 mm
Dielectric Strength 1000 VAC RMS
Options Other jacket colors; other conductor materials, gauges and / or stranding; other impedances; other transmission speeds.
