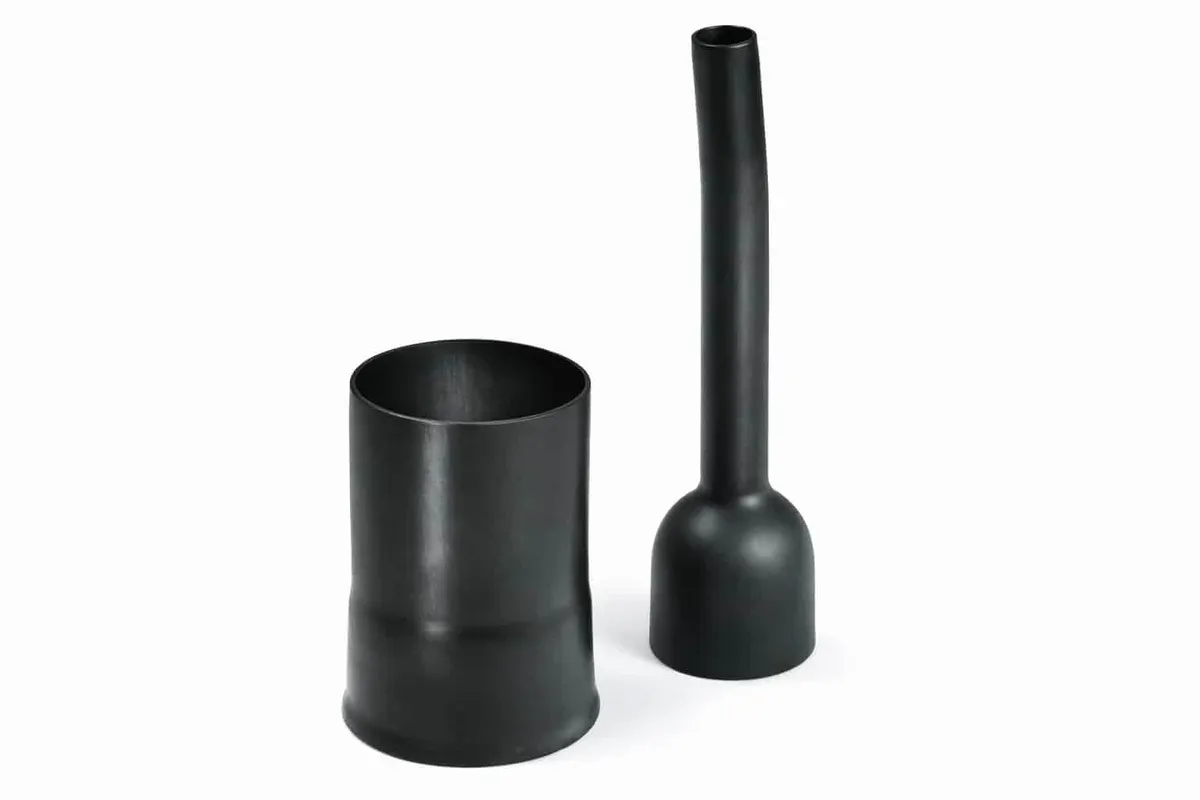

Long outlet heat shrink molded shape for low profile aerospace cable harnesses.

SAE AS22759/32 MIL aerospace wire and cable

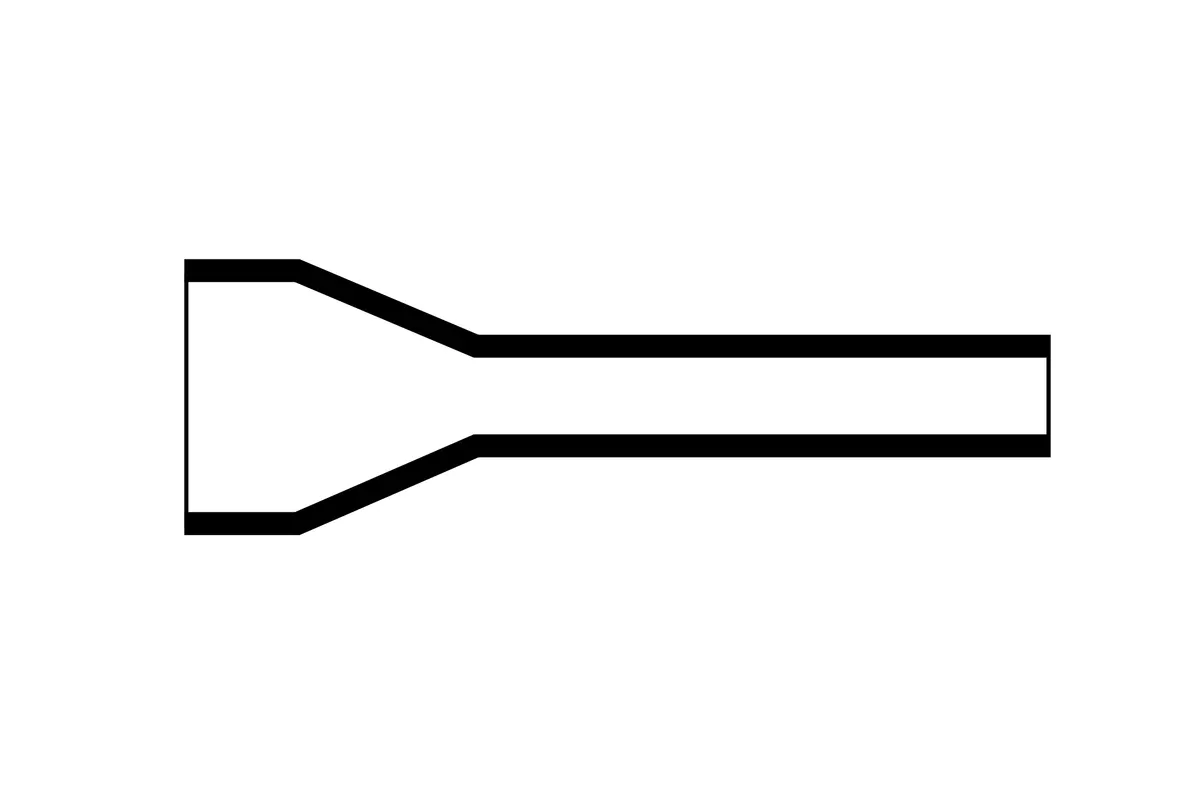

Long outlet shapes without rib for flexible cable routing.

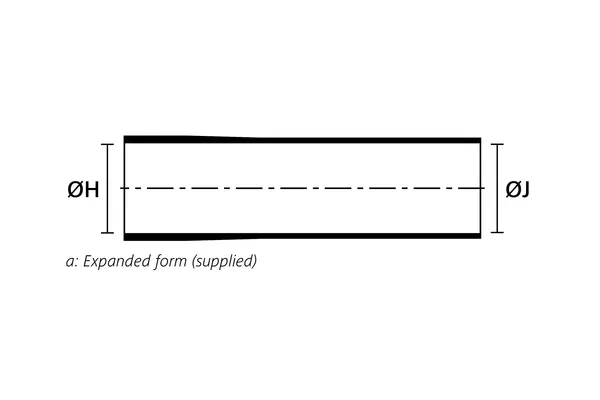

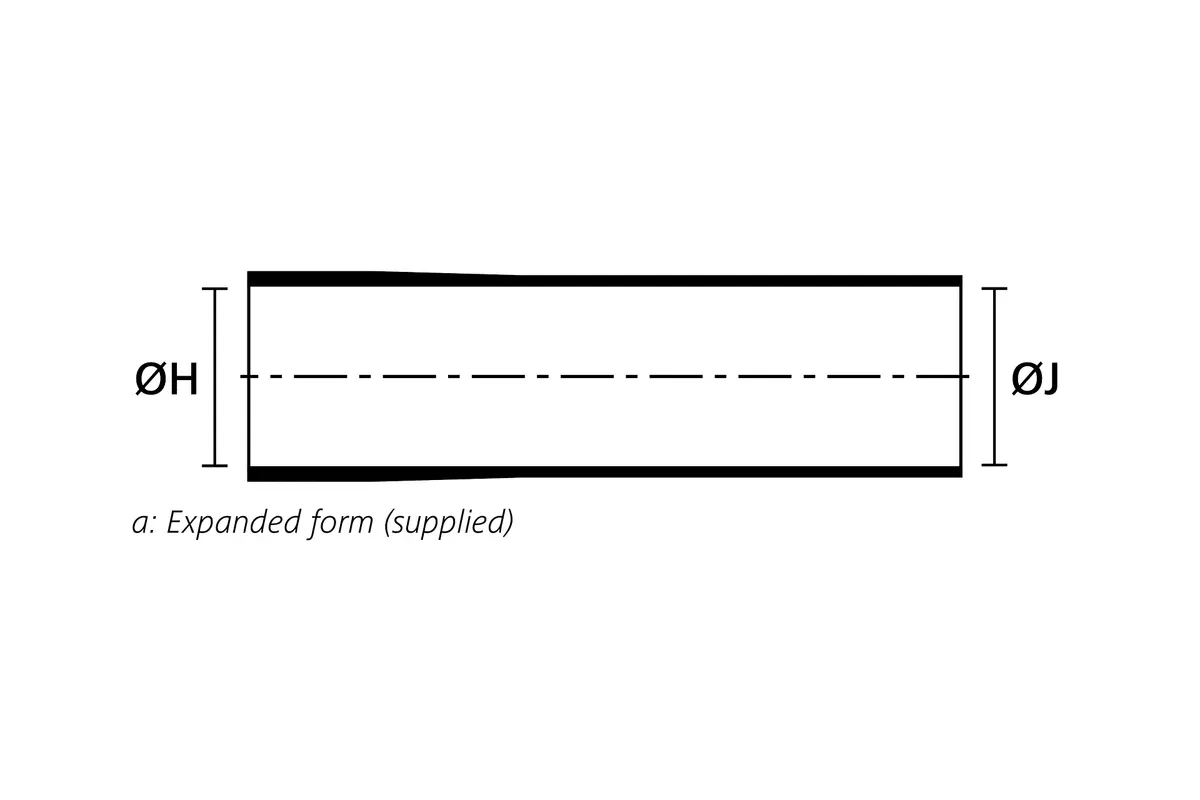

Expanded form of Helashrink 140 series long outlet shape before heat recovery.

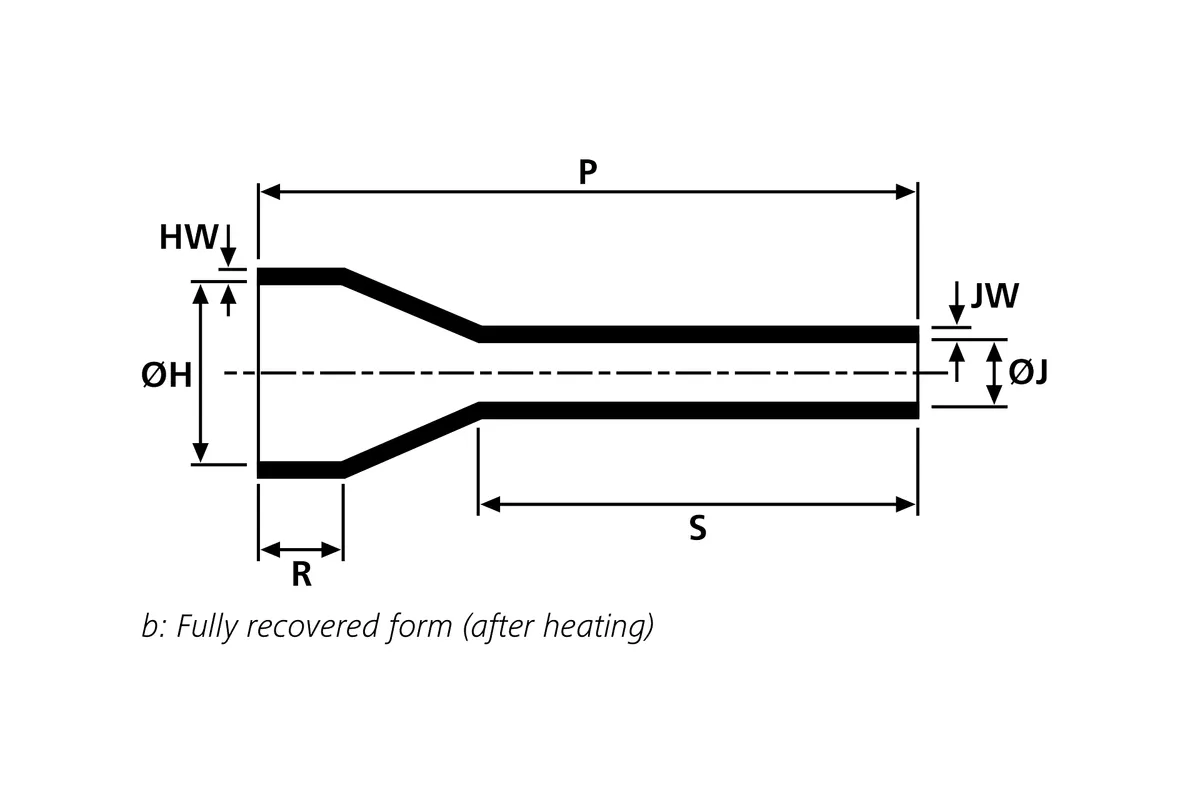

Fully recovered form of Helashrink 140 series long outlet shape after heating.

Flexi-Lene T200™ Commercial Wire

Flexi-Lene Commercial Wire

Item #	AWG Size	Total Strand Count	Plating	Nom. Conductor Diameter	Nom. Finished Wire Diameter
W-T200-01X4214-CP	0	4214 x 36	Silver (S)	0.431 in	0.513 in
W-T200-02X5292-CP	00	5292 x 36	Silver (S)	0.483 in	0.565 in
W-T200-03X6783-CP	000	6783 x 36	Silver (S)	0.547 in	0.645 in
W-T200-10X413-CP	10	413 x 36	Silver (S)	0.126 in	0.154 in
W-T200-12X259-CP	12	259 x 36	Silver (S)	0.099 in	0.127 in
W-T200-14X168-CP	14	168 x 36	Silver (S)	0.080 in	0.110 in
W-T200-16X105-CP	16	105 x 36	Silver (S)	0.063 in	0.082 in
W-T200-18X65-CP	18	65 x 36	Silver (S)	0.047 in	0.079 in
W-T200-1X3332-CP	1	3332 x 36	Silver (S)	0.357 in	0.485 in
W-T200-20X42-CP	20	42 x 36	Silver (S)	0.037 in	0.068 in
W-T200-22X66-CP	22	66 x 40	Silver (S)	0.029 in	0.060 in
W-T200-24X42-CP	24	42 x 40	Silver (S)	0.023 in	0.054 in
W-T200-2X2646-CP	2	2646 x 36	Silver (S)	0.342 in	0.405 in
W-T200-4X1666-CP	4	1666 x 36	Silver (S)	0.271 in	0.359 in
W-T200-6X1050-CP	6	1050 x 36	Silver (S)	0.200 in	0.294 in
W-T200-8X665-CP	8	665 x 36	Silver (S)	0.159 in	0.210 in
