UL 5180 (300V) Wire-High Temperature, Abrasion Resistant Commercial Wire
High Temp Abrasion Resistant Wire

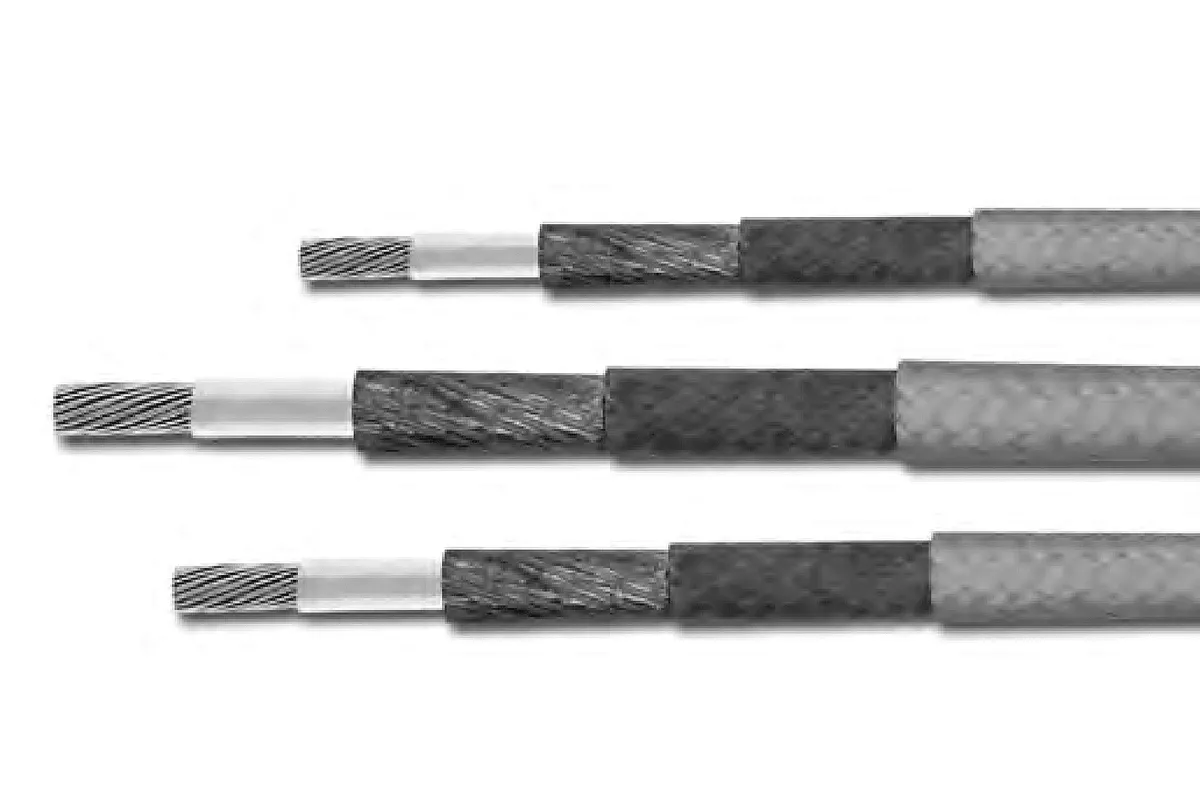

These wires combine the outstanding performance of a PTFE (Polytetrafluoroethylene) dielectric with the mechanical toughness of served fiberglass insulation and glass outer jacket. This insulation system offers easy stripping with automatic equipment and high resistance to mechanical stress, abrasion, moisture, and fluid.
Products
| Item # | Conductor Diameter | Insulation Diameter | Stranding | Temperature Rating | AWG Size |
|---|---|---|---|---|---|
| UL5180-22-730 | 0.030 in | 0.097 in | 7/30 | 250 ºC | 22 |
| UL5180-10-3726 | 0.108 in | 0.177 in | 37/26 | 250 ºC | 10 |
| UL5180-12-1925 | 0.084 in | 0.151 in | 19/25 | 250 ºC | 12 |
| UL5180-14-1927 | 0.067 in | 0.134 in | 19/27 | 250 ºC | 14 |
| UL5180-16-1929 | 0.053 in | 0.120 in | 19/29 | 250 ºC | 16 |
| UL5180-18-1930 | 0.047 in | 0.114 in | 19/30 | 250 ºC | 18 |
| UL5180-18-726 | 0.048 in | 0.115 in | 7/26 | 250 ºC | 18 |
| UL5180-20-1932 | 0.038 in | 0.105 in | 19/32 | 250 ºC | 20 |
| UL5180-20-728 | 0.038 in | 0.105 in | 7/28 | 250 ºC | 20 |
| UL5180-22-1934 | 0.030 in | 0.096 in | 19/34 | 250 ºC | 22 |
| UL5180-8-13329 | 0.163 in | 0.232 in | 133/29 | 250 ºC | 8 |
Visit the FDH Electronics online store and create an account for special pricing.
