UL 5107 (600V) Wire-Ultra-High Temperature, Abrasion Resistant Commercial Wire
Ultra High Temp Abrasion Resistant Wire

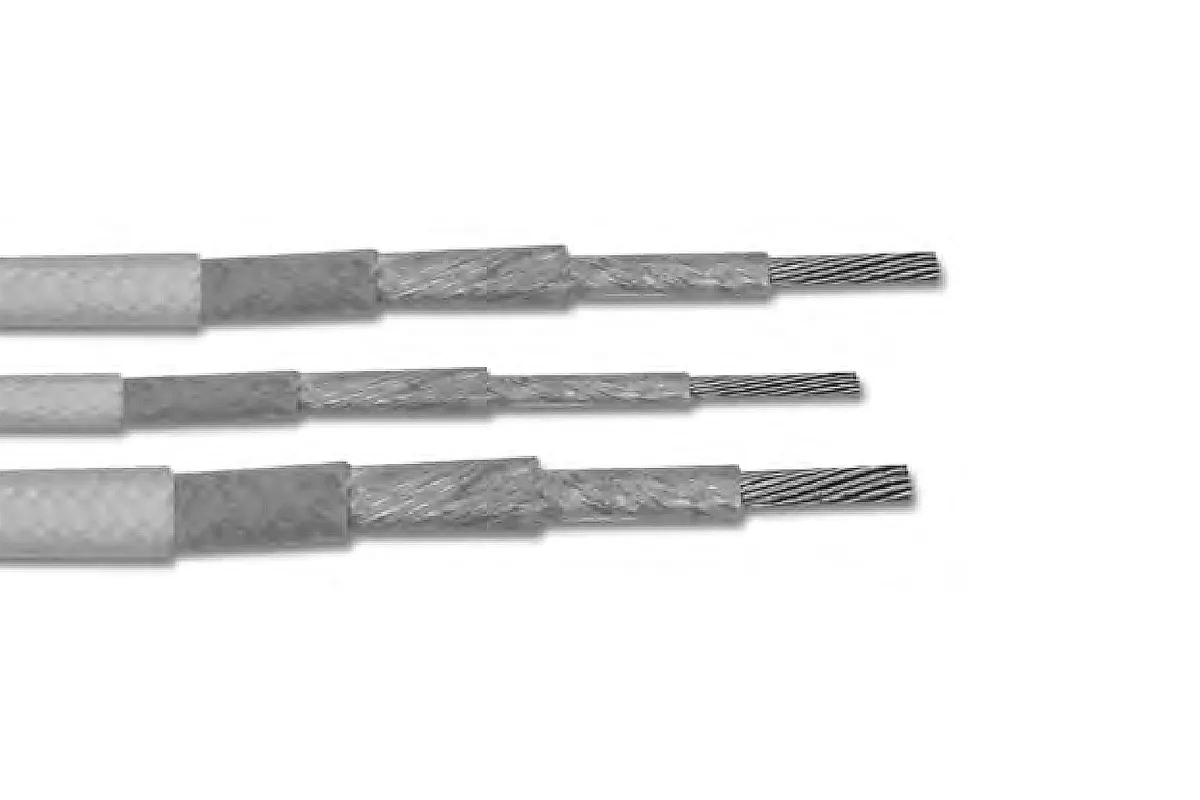

These wires have glass-reinforced mica tape insulation and a braided fiberglass jacket for enhanced abrasion resistance. They meet all UL requirements for appliance lead wire and are also available with CSA certification.
Products
| Item # | Conductor Diameter | Insulation Diameter | Stranding | Temperature Rating | AWG Size |
|---|---|---|---|---|---|
| UL5107-10-3726 | 0.110 in | 0.212 in | 37/26 | 450 ºC | 10 |
| UL5107-10-4927 | 0.126 in | 0.228 in | 49/27 | 450 ºC | 10 |
| UL5107-12-1925 | 0.088 in | 0.162 in | 19/25 | 450 ºC | 12 |
| UL5107-12-1927 | 0.071 in | 0.145 in | 19/27 | 450 ºC | 14 |
| UL5107-16-1929 | 0.056 in | 0.130 in | 19/29 | 450 ºC | 16 |
| UL5107-18-1930 | 0.050 in | 0.124 in | 19/30 | 450 ºC | 18 |
| UL5107-18-726 | 0.048 in | 0.122 in | 7/26 | 450 ºC | 18 |
| UL5107-20-1932 | 0.040 in | 0.114 in | 19/32 | 450 ºC | 20 |
| UL5107-22-1934 | 0.032 in | 0.106 in | 19/34 | 450 ºC | 22 |
| UL5107-8-13329 | 0.168 in | 0.270 in | 133/29 | 450 ºC | 8 |
Visit the FDH Electronics online store and create an account for special pricing.
