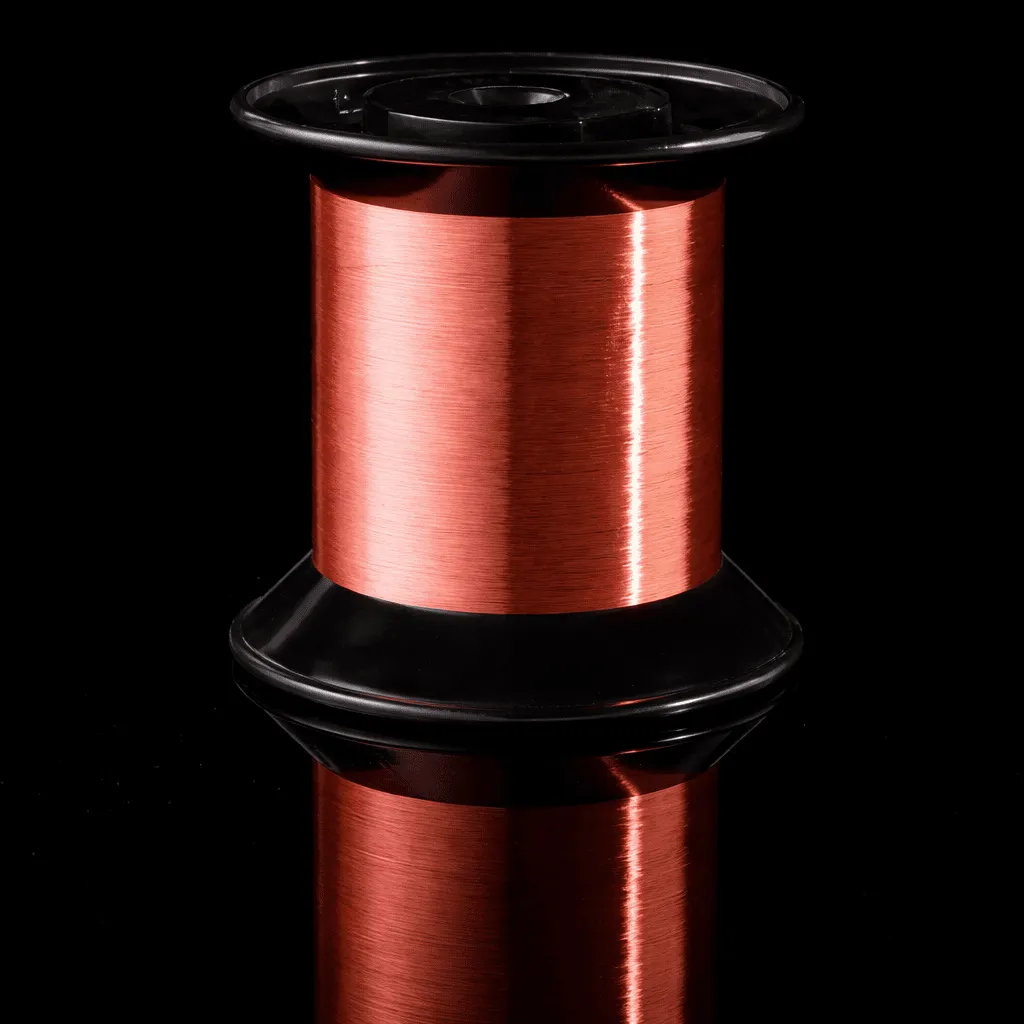

Heavy poly nylon round magnet wire on spool

Heavy Polyimide Insulated Round Magnet Wire

Magnet Wire

HML is a film-coated magnet wire made with aromatic polyimide resin. It is a Class 240 insulation with exceptional resistance to chemical solvents and burn-out. It will operate at temperatures in excess of 240°C for intermittent duty. The outstanding thermoplastic flow of over 400°C and its ability to withstand excessive overloads extends the use of magnet wire in extreme conditions. HML is unaffected by prolonged exposure to varnish solvents and is compatible with most systems.Typical ApplicationsWhenever high temperatures and extreme overload or ambient conditions are required, HML magnet wire may be used.Fractional and integral horsepower motorsHigh temperature continuous duty coils and relaysHermetic and sealed unitsHeavy duty hand tool motorsEncapsulated coils

Products

Item # AWG Size Nom. Bare Wire Diameter Min. Increase in Diameter Due to Film Coating Max. Overall Diameter of Film-Coated Wire
MWRD06HML 6 0.1620 in 0.0035 in 0.1671 in
MWRD08HML 8 0.1285 in 0.0033 in 0.1332 in
MWRD09HML 9 0.1144 in 0.0032 in 0.1189 in
MWRD10HML 10 0.1019 in 0.0031 in 0.1061 in
MWRD11HML 11 0.0907 in 0.0030 in 0.0948 in
MWRD12HML 12 0.0808 in 0.0029 in 0.0847 in
MWRD13HML 13 0.0720 in 0.0028 in 0.0757 in
MWRD14HML 14 0.0641 in 0.0032 in 0.0682 in
MWRD15HML 15 0.0571 in 0.0030 in 0.0609 in
MWRD155HML 15-1/2 0.0539 in 0.0030 in 0.0576 in
MWRD16HML 16 0.0508 in 0.0029 in 0.0545 in
MWRD17HML 17 0.0453 in 0.0028 in 0.0488 in
MWRD18HML 18 0.0403 in 0.0026 in 0.0437 in
MWRD185HML 18-1/2 0.0380 in 0.0026 in 0.0414 in
MWRD19HML 19 0.0359 in 0.0025 in 0.0391 in
MWRD195HML 19-1/2 0.0339 in 0.0025 in 0.0370 in
MWRD20HML 20 0.0320 in 0.0023 in 0.0351 in
MWRD21HML 21 0.0285 in 0.0022 in 0.0314 in
MWRD22HML 22 0.0253 in 0.0021 in 0.0281 in
MWRD23HML 23 0.0226 in 0.0020 in 0.0253 in
MWRD235HML 23-1/2 0.0213 in 0.0020 in 0.0240 in
MWRD24HML 24 0.0201 in 0.0019 in 0.0227 in
MWRD25HML 25 0.0179 in 0.0018 in 0.0203 in
MWRD255HML 25-1/2 0.0169 in 0.0018 in 0.0193 in
MWRD26HML 26 0.0159 in 0.0017 in 0.0182 in
MWRD265HML 26-1/2 0.0150 in 0.0017 in 0.0173 in
MWRD27HML 27 0.0142 in 0.0016 in 0.0164 in
MWRD275HML 27-1/2 0.0134 in 0.0016 in 0.0156 in
MWRD28HML 28 0.0126 in 0.0016 in 0.0147 in
MWRD285HML 28-1/2 0.0119 in 0.0016 in 0.0140 in
MWRD29HML 29 0.0113 in 0.0015 in 0.0133 in
MWRD295HML 29-1/2 0.0106 in 0.0015 in 0.0126 in
MWRD30HML 30 0.0100 in 0.0014 in 0.0119 in
MWRD305HML 30-1/2 0.0095 in 0.0014 in 0.0114 in
MWRD31HML 31 0.0089 in 0.0013 in 0.0108 in
MWRD315HML 31-1/2 0.0084 in 0.0013 in 0.0103 in
MWRD32HML 32 0.0080 in 0.0012 in 0.0098 in
MWRD325HML 32-1/2 0.0075 in 0.0012 in 0.0093 in
MWRD33HML 33 0.0071 in 0.0011 in 0.0088 in
MWRD34HML 34 0.0063 in 0.0010 in 0.0078 in
MWRD345HML 34-1/2 0.0059 in 0.0010 in 0.0074 in
MWRD35HML 35 0.0056 in 0.0009 in 0.0070 in
MWRD36HML 36 0.0050 in 0.0008 in 0.0063 in
MWRD365HML 36-1/2 0.0047 in 0.0007 in 0.0060 in
MWRD37HML 37 0.0045 in 0.0007 in 0.0057 in
MWRD375HML 37-1/2 0.0042 in 0.0007 in 0.0054 in
MWRD38HML 38 0.004 in 0.0007 in 0.0051 in
MWRD385HML 38-1/2 0.0037 in 0.0006 in 0.0048 in
MWRD39HML 39 0.0035 in 0.0006 in 0.0045 in
MWRD40HML 40 0.0031 in 0.0006 in 0.0040 in
MWRD405HML 40-1/2 0.003 in 0.0005 in 0.0039 in
MWRD41HML 41 0.0028 in 0.0005 in 0.0036 in
MWRD42HML 42 0.0025 in 0.0004 in 0.0032 in
MWRD425HML 42-1/2 0.0024 in 0.0004 in 0.0031 in
MWRD43HML 43 0.0022 in 0.0004 in 0.0029 in
MWRD44HML 44 0.002 in 0.0004 in 0.0027 in
MWRD45HML 45 0.00176 in 0.0004 in 0.0024 in
MWRD46HML 46 0.00157 in 0.0003 in 0.0021 in
MWRD48HML 48 0.00124 in 0.0002 in 0.00170 in
