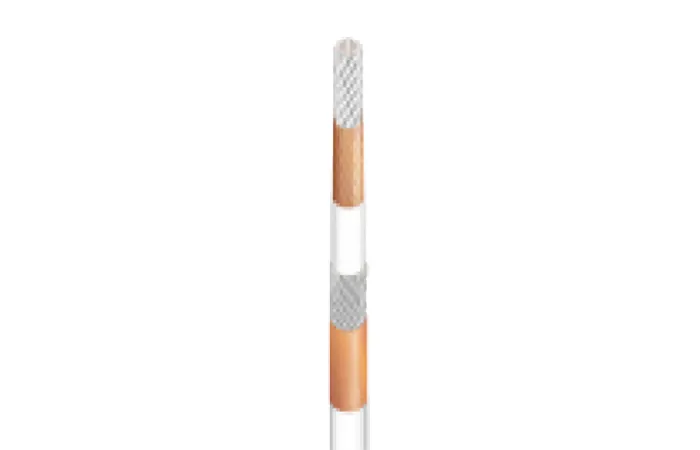

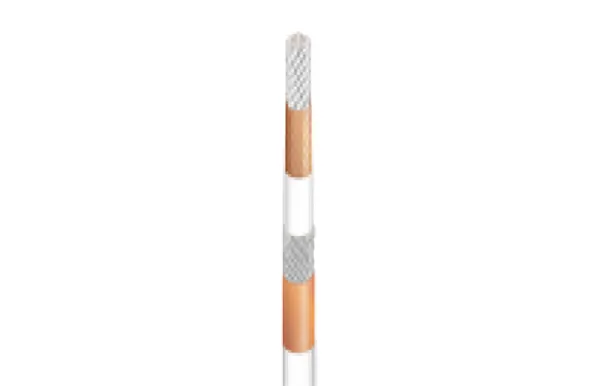

24 American Wire Gauge (AWG) Thickness Electric Cable

Product #: ASNE0291SW24

ASNE wire and cable is suitable for use in military and commercial applications that are exposed to a wide range of challenging physical conditions. Although it is primarily used in the European aerospace industry, these components have become increasingly prevalent in the transit, petrochemical, and marine industries as well.In addition to offering high-performance and reliability in both high and low-temperature environments, ASNE wire offers excellent resistance to fire, as well as oils and solvents. ASNE specifications also allow for a variety of construction types: single core, twisted pairs, and shielded/screened and jacketed. This makes it a logical option for applications in virtually any kind of environment.

Specifications

Thickness 24 AWG
Cable Type Coaxial
Temperature Range -55 to +200 ºC
Number of Conductors 1
Specification ASN-E0291
Voltage 600 V
Conductor Material Silver Plated Copper
Stranding Stranded
Operating Environment High Temperature
Low Temperature

Applications

Applications Military
Commercial Applications
Aerospace Industry
Transit
Petrochemical
Marine Industries
