16 GA High Voltage Corona Resistant Wire
Product #: W-4431-4159
Single Conductor, Stranded Silver Plated Copper, Corona Resistant PTFE InsulationTemperature Variations from -90°C to +200°C have no life effect on the corona resistantAvailable Colors: White, Black, Red, Green, Yellow, Lt. Blue, Brown, Gray, Violet, Orange

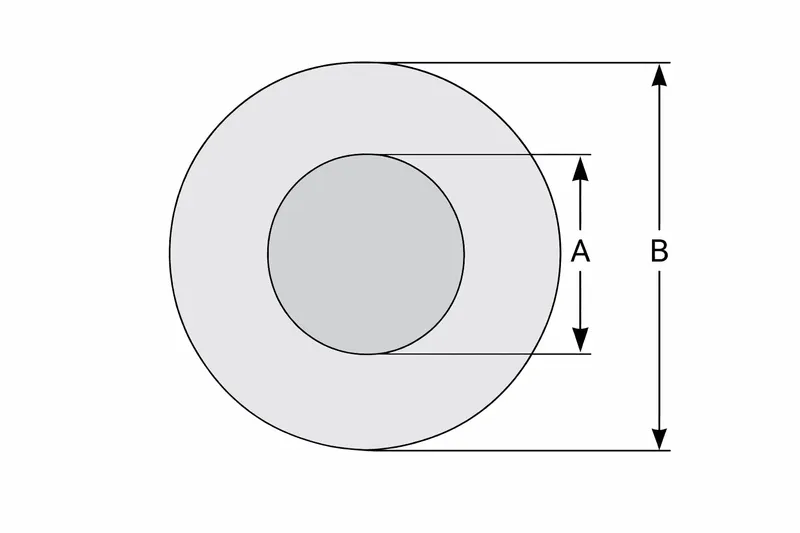

Construction Details
| Conductor | 16 AWG 19/29 Silver Plated Copper |
| Conductor Diameter | 0.06 in |
| Corona Insulation | Corona layer of overlapping tape |
| Tape wrap of PTFE - 0.035 in wall | |
| Corona Insulation Diameter | 0.127 in |
| Color Code | Black |
| Blue | |
| Brown | |
| Gray | |
| Green | |
| Orange | |
| Red | |
| Violet | |
| White | |
| Yellow |
Properties
| Corona | Resistant |
| Temperature | -60 to 200 ºC |
| Voltage AC @ 60 Hz (Sea Level) | 8000 V |
| Voltage AC @ 60 Hz (80,000 Feet) | 5500 V |
| Voltage DC Rating (Sea Level) | 18,000 V |
| Voltage DC Rating (80,000 Feet) | 12,000 V |
Flammability
| Note | Shall Pass FAA FAR 25.869 |
Packaging
| Note | To be supplied on bulk reels, 100 feet minimum lengths |
