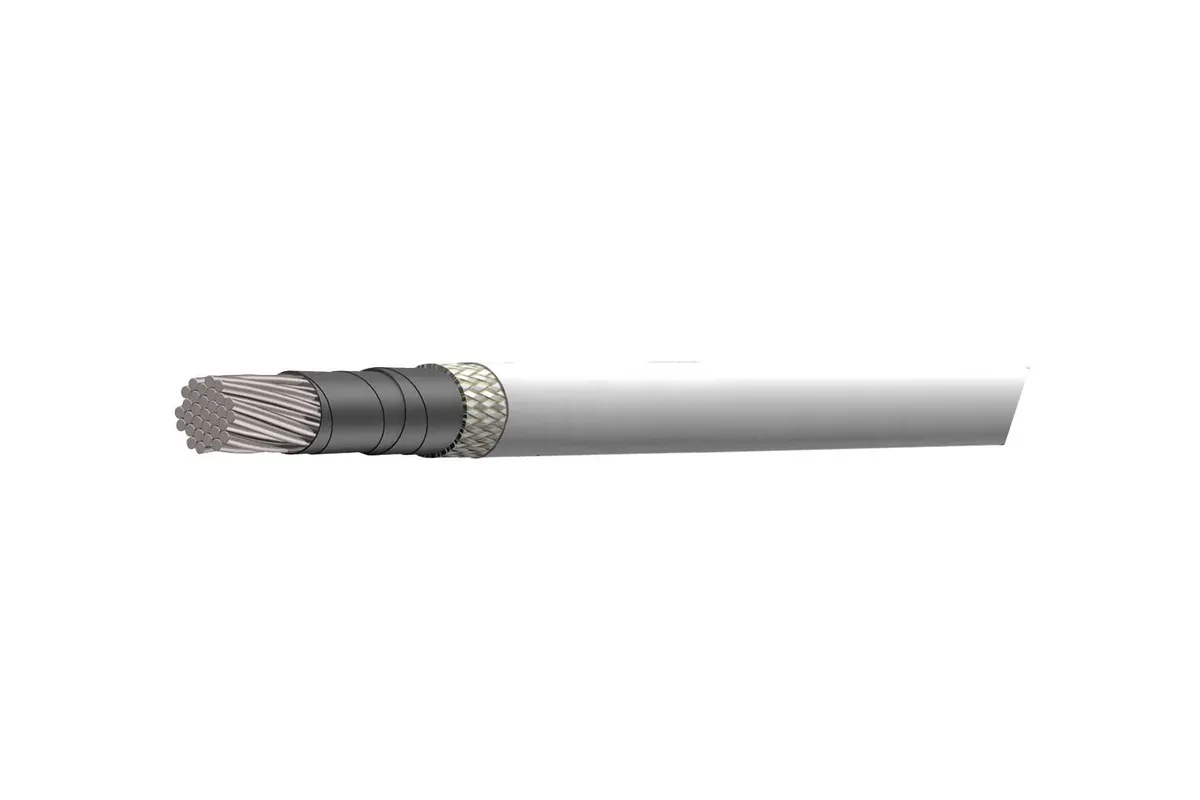

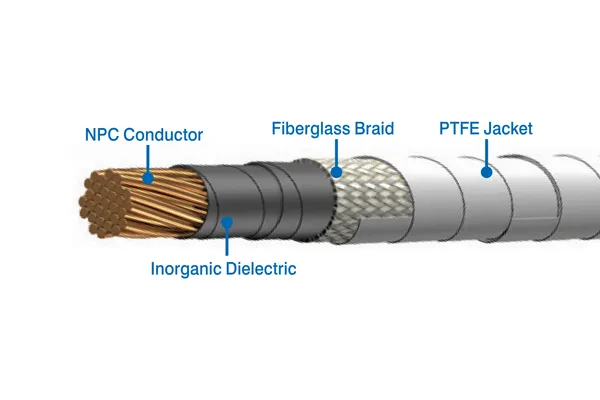

[ai] MIL W 25038/3 Thermazone wire with PTFE insulation

MIL W 25038/3 Thermazone wire with PTFE insulation

M25038/1 (Thermazone I) Wire - High Temperature, Abrasion Resistant

High Temp Abrasion Resistant Wire

These wires are designed for critical circuit applications where wires must operate in extremely harsh environments, under vibration and with direct flame exposure. This heavy-duty, non-asbestos construction offers excellent mechanical performance and abrasion resistance.

Products

Item #	Conductor Size	Conductor Diameter	Stranding	Min. Insulation Diameter	Max. Insulation Diameter	Max. Resistance per 1000 ft. @ 20°C	Insulation Color	Temperature Rating	Weight
M25038/1-12	12 AWG	0.090 in	19/25	0.165 in	0.185 in	2.78 ohms	Black	-55 to 260 ºC	35.0 lb/1000 ft.
M25038/1-14	14 AWG	0.072 in	19/27	0.150 in	0.170 in	4.32 ohms	Black	-55 to 260 ºC	25.0 lb/1000 ft.
M25038/1-16	16 AWG	0.056 in	19/29	0.127 in	0.147 in	6.85 ohms	Black	-55 to 260 ºC	19.0 lb/1000 ft.
M25038/1-18	18 AWG	0.050 in	19/30	0.119 in	0.135 in	9.14 ohms	Black	-55 to 260 ºC	15.00 lb/1000 ft.
M25038/1-20	20 AWG	0.040 in	19/32	0.109 in	0.125 in	14.60 ohms	Black	-55 to 260 ºC	12.0 lb/1000 ft.
M25038/1-22	22 AWG	0.031 in	19/34	0.100 in	0.116 in	23.70 ohms	Black	-55 to 260 ºC	10.0 lb/1000 ft.
